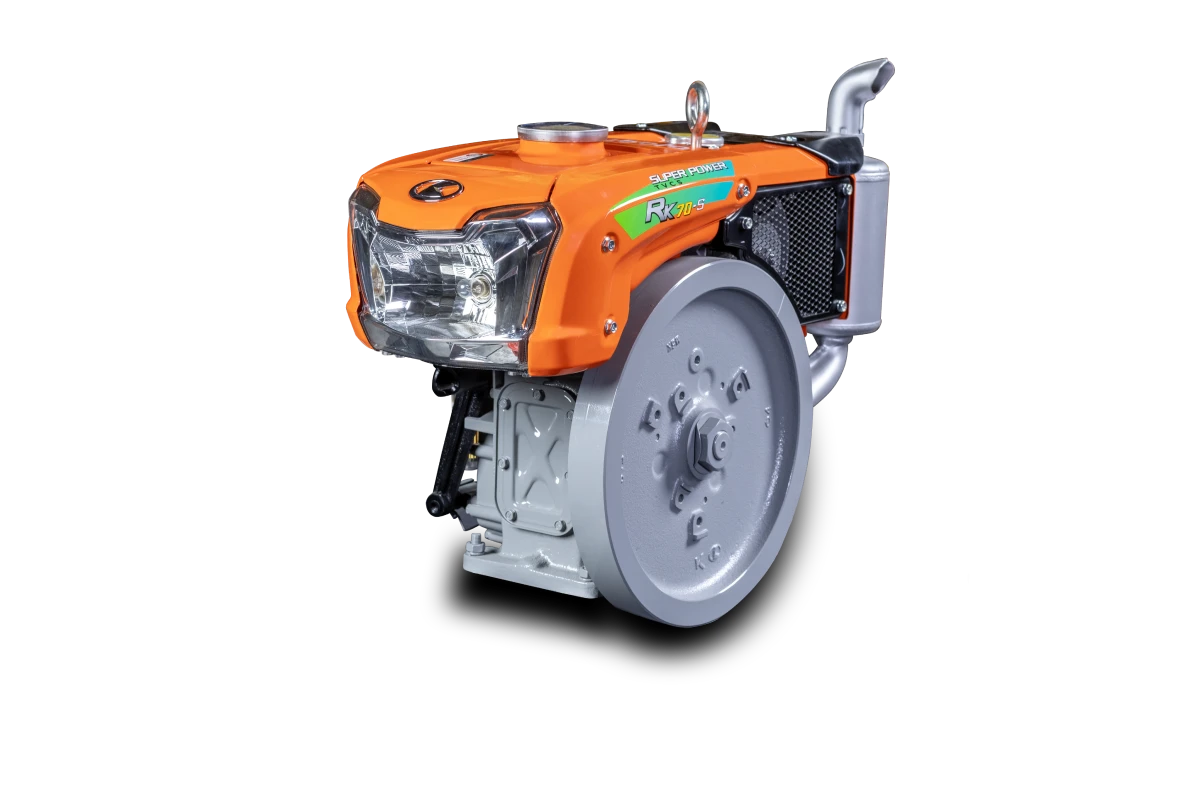

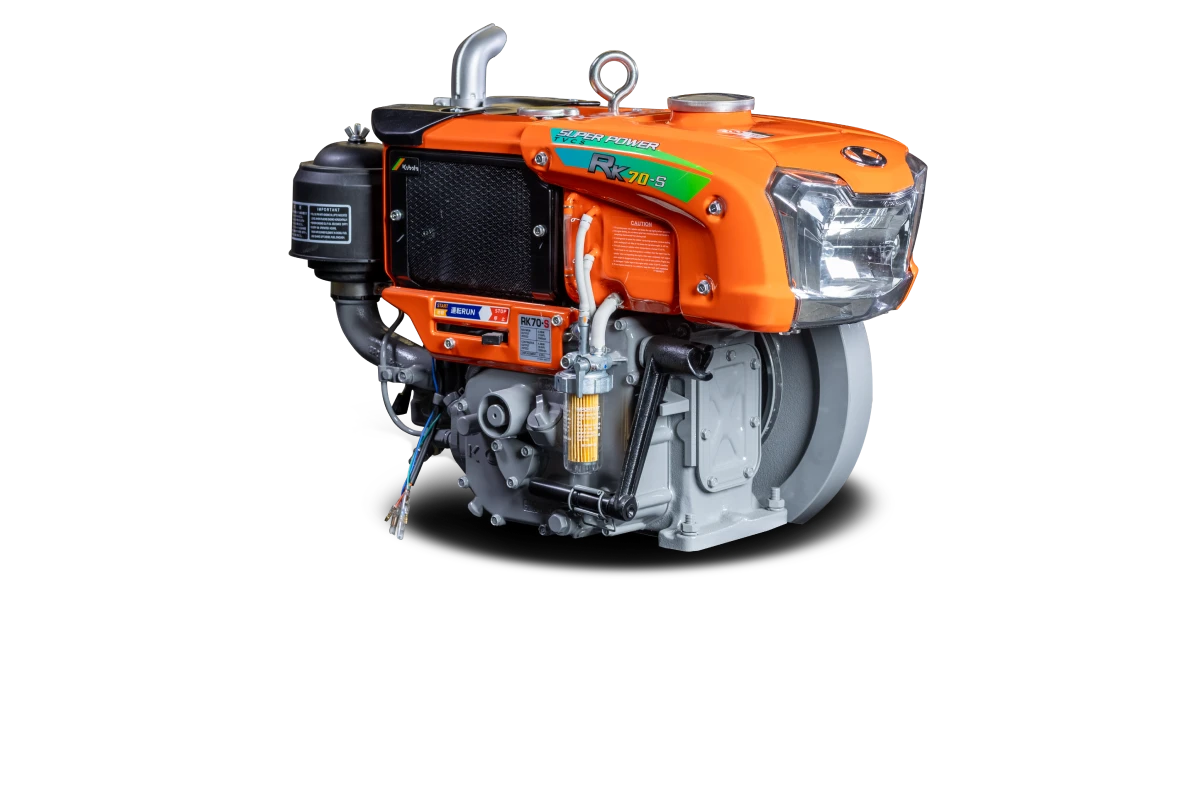

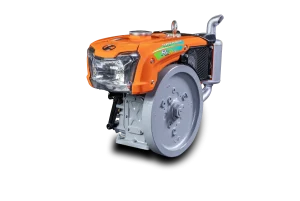

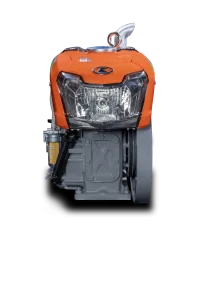

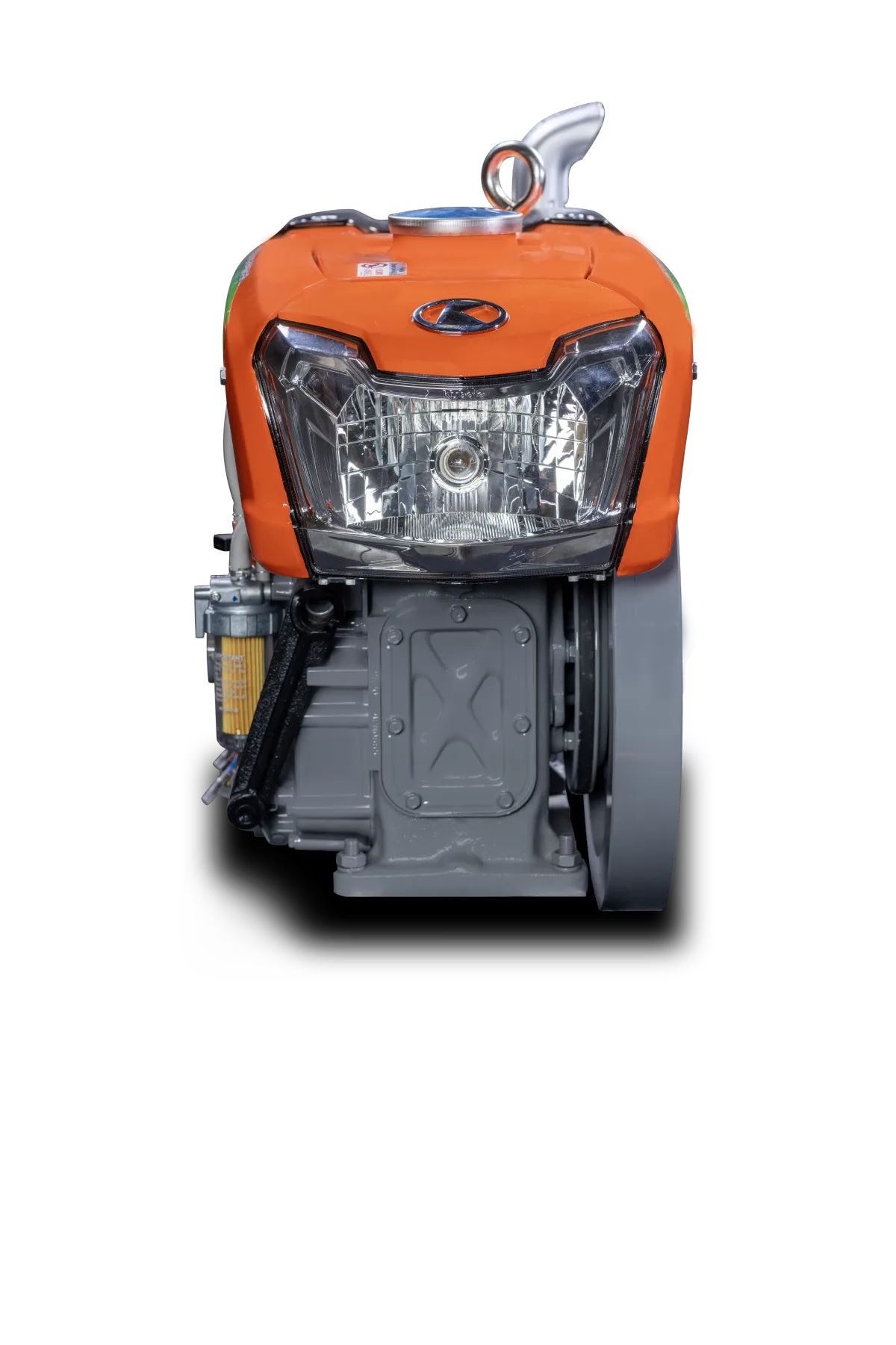

| Model | RK70-1S | ||
|---|---|---|---|
| Type | Horizontal Water-cooled, 4-Cycle Diesel Engine | ||
| Number of Cylinder | 1 | ||
| Bore x Stroke | mm(in) | 80 x 75 (3.15 x 2.95) | |
| Displacement | cc(cu.in) | 376 (22.94) | |
| Maximum Output | hp/rpm | 7.0/2400 | |
| kW/rpm | 5.22/2400 | ||
| Continuous Rated Output | hp/rpm | 6.0/2200 | |
| kW/rpm | 4.48/2200 | ||
| Combustion System | Three Vortex Combustion System | ||
| Compression Ratio | 24 | ||
| Direction of Rotation | Counter Clockwise (Viewed Fronting the Flywheel) | ||
| Starting System | Manual Speed- Double Handling | ||
| Lubricant System | Forced Lubrication with Trochoid Pump | ||
| Cooling System | Radiator | ||
| Fuel | Light Diesel Oil (SAE no. 2.0) | ||
| Lubricating Oil | API service CC, CD or CF class (SAE #30, 20, 10W-30) | ||
| Cooling Water Capacity | L(US gal) | 1.3(0.34) | |
| Fuel Tank Capacity | L(US gal) | 8(2.11) | |
| Crankcase Oil Capacity | L(US gal) | 2.0(0.53) | |
| Dry Weight | kg(lb) | 67(147.7) | |
| Lamp Dynamo Output | V.W | 12-32 | |
