Kubota Philippines, Inc.

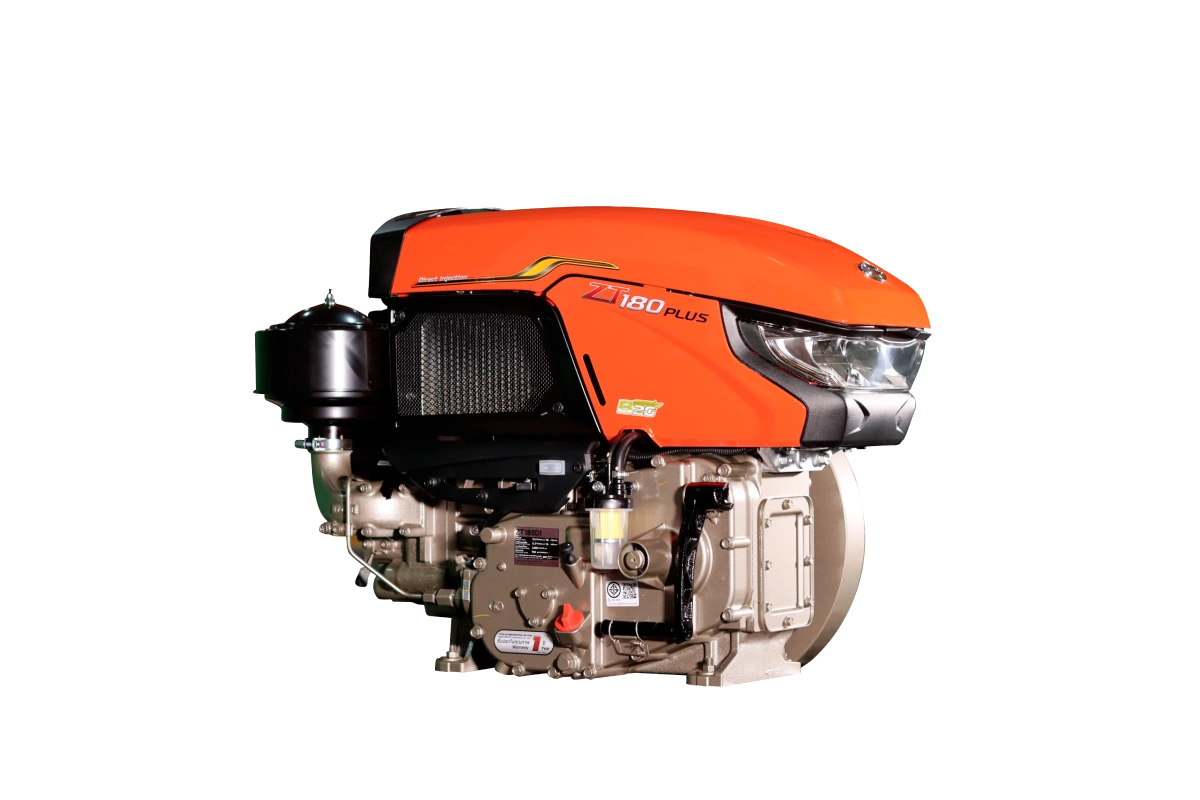

IMG 8253

Product Specifications

Dimension
Type Four-stroke water cooled horizontal diesel engine
Number of Cylinder 1
Bore x Stroke mm(in) 107 x 105 (4.21 x 4.13)
Displacement cc 944
Maximum Output hp/rpm 18/2,400
kW/rpm 13.4 /2,400
Continous Rated Output hp/rpm 16/2,400
kW/rpm 11.9/2,400
Combustion System Direct Injection System
Compression Ratio 18.2:1
Direction of Rotation
Starting System Double speed hand starter / ES models feature an electric starter
Lubricant System Trochoid pump
Cooling System Pressurized radiator
Fuel Automotive Diesel fuel (SAE No. 2-D), Biodiesel fuel (B7~B20)
Lubricating Oil SAE 10W-30, SAE 10W-40
Cooling Water Capacity L 2.9
Fuel Tank Capacity L 14.5
Lubricating Oil Capacity L 3.7
Rated Rational Speed rpm 2400
Specific fuel Consumption at Continuous Rated Power g/hp/hour 240
Maximum Torque Kg-m / rpm 6.5/1600
Air cleaner type Oil bath type
Engine starting system Double speed hand string
Battery capacity (ES model only)
Rotation direction of flywheel Turn counterclockwise when facing the flywheel
Net Weight kg 145
Gross Weight kg 160

Application Features

Efficiency
Type Four-stroke water cooled horizontal diesel engine
Number of Cylinder 1
Bore x Stroke mm(in) 107 x 105 (4.21 x 4.13)
Displacement cc 944
Maximum Output hp/rpm 18/2,400
kW/rpm 13.4 /2,400
Continous Rated Output hp/rpm 16/2,400
kW/rpm 11.9/2,400
Combustion System Direct Injection System
Compression Ratio 18.2:1
Direction of Rotation
Starting System Double speed hand starter / ES models feature an electric starter
Lubricant System Trochoid pump
Cooling System Pressurized radiator
Fuel Automotive Diesel fuel (SAE No. 2-D), Biodiesel fuel (B7~B20)
Lubricating Oil SAE 10W-30, SAE 10W-40
Cooling Water Capacity L 2.9
Fuel Tank Capacity L 14.5
Lubricating Oil Capacity L 3.7
Rated Rational Speed rpm 2400
Specific fuel Consumption at Continuous Rated Power g/hp/hour 240
Maximum Torque Kg-m / rpm 6.5/1600
Air cleaner type Oil bath type
Engine starting system Double speed hand string
Battery capacity (ES model only)
Rotation direction of flywheel Turn counterclockwise when facing the flywheel
Net Weight kg 145
Gross Weight kg 160
Durability
Type Four-stroke water cooled horizontal diesel engine
Number of Cylinder 1
Bore x Stroke mm(in) 107 x 105 (4.21 x 4.13)
Displacement cc 944
Maximum Output hp/rpm 18/2,400
kW/rpm 13.4 /2,400
Continous Rated Output hp/rpm 16/2,400
kW/rpm 11.9/2,400
Combustion System Direct Injection System
Compression Ratio 18.2:1
Direction of Rotation
Starting System Double speed hand starter / ES models feature an electric starter
Lubricant System Trochoid pump
Cooling System Pressurized radiator
Fuel Automotive Diesel fuel (SAE No. 2-D), Biodiesel fuel (B7~B20)
Lubricating Oil SAE 10W-30, SAE 10W-40
Cooling Water Capacity L 2.9
Fuel Tank Capacity L 14.5
Lubricating Oil Capacity L 3.7
Rated Rational Speed rpm 2400
Specific fuel Consumption at Continuous Rated Power g/hp/hour 240
Maximum Torque Kg-m / rpm 6.5/1600
Air cleaner type Oil bath type
Engine starting system Double speed hand string
Battery capacity (ES model only)
Rotation direction of flywheel Turn counterclockwise when facing the flywheel
Net Weight kg 145
Gross Weight kg 160
Convenience
Type Four-stroke water cooled horizontal diesel engine
Number of Cylinder 1
Bore x Stroke mm(in) 107 x 105 (4.21 x 4.13)
Displacement cc 944
Maximum Output hp/rpm 18/2,400
kW/rpm 13.4 /2,400
Continous Rated Output hp/rpm 16/2,400
kW/rpm 11.9/2,400
Combustion System Direct Injection System
Compression Ratio 18.2:1
Direction of Rotation
Starting System Double speed hand starter / ES models feature an electric starter
Lubricant System Trochoid pump
Cooling System Pressurized radiator
Fuel Automotive Diesel fuel (SAE No. 2-D), Biodiesel fuel (B7~B20)
Lubricating Oil SAE 10W-30, SAE 10W-40
Cooling Water Capacity L 2.9
Fuel Tank Capacity L 14.5
Lubricating Oil Capacity L 3.7
Rated Rational Speed rpm 2400
Specific fuel Consumption at Continuous Rated Power g/hp/hour 240
Maximum Torque Kg-m / rpm 6.5/1600
Air cleaner type Oil bath type
Engine starting system Double speed hand string
Battery capacity (ES model only)
Rotation direction of flywheel Turn counterclockwise when facing the flywheel
Net Weight kg 145
Gross Weight kg 160
