Kubota Philippines, Inc.

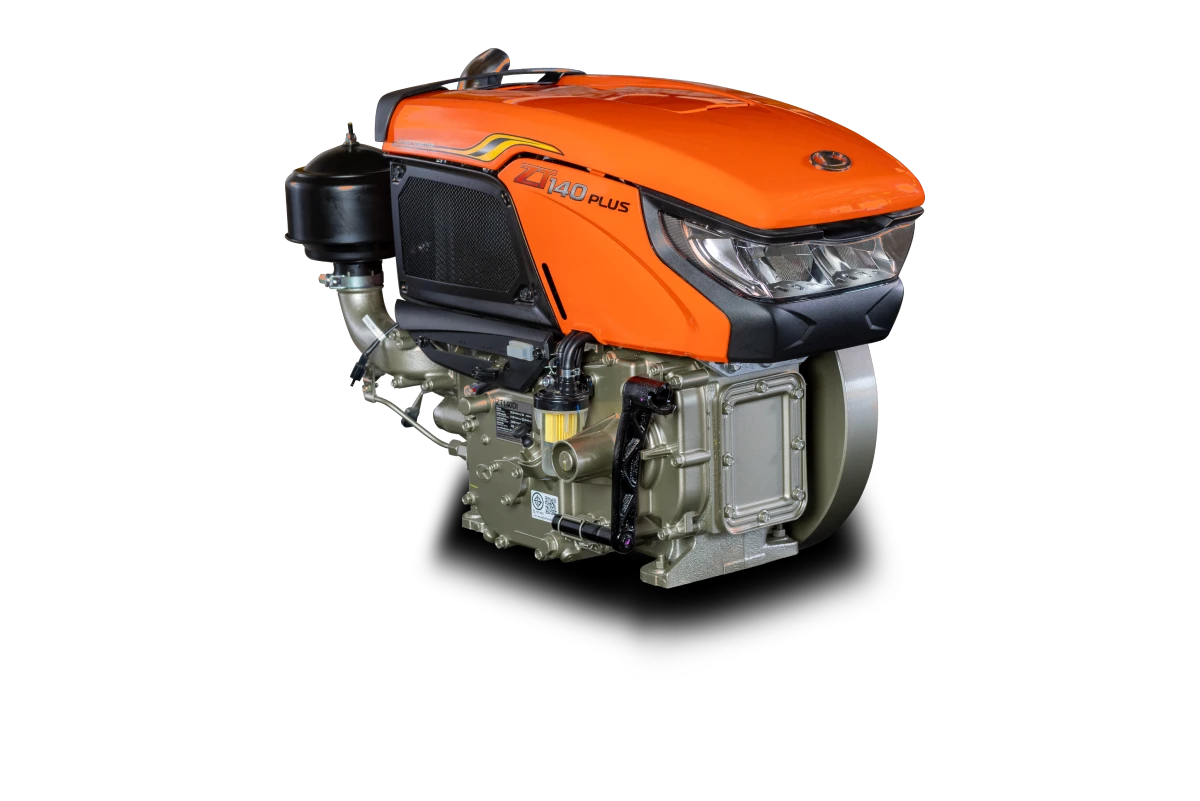

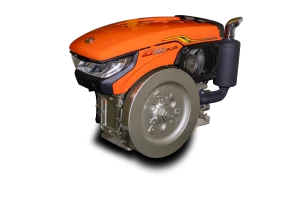

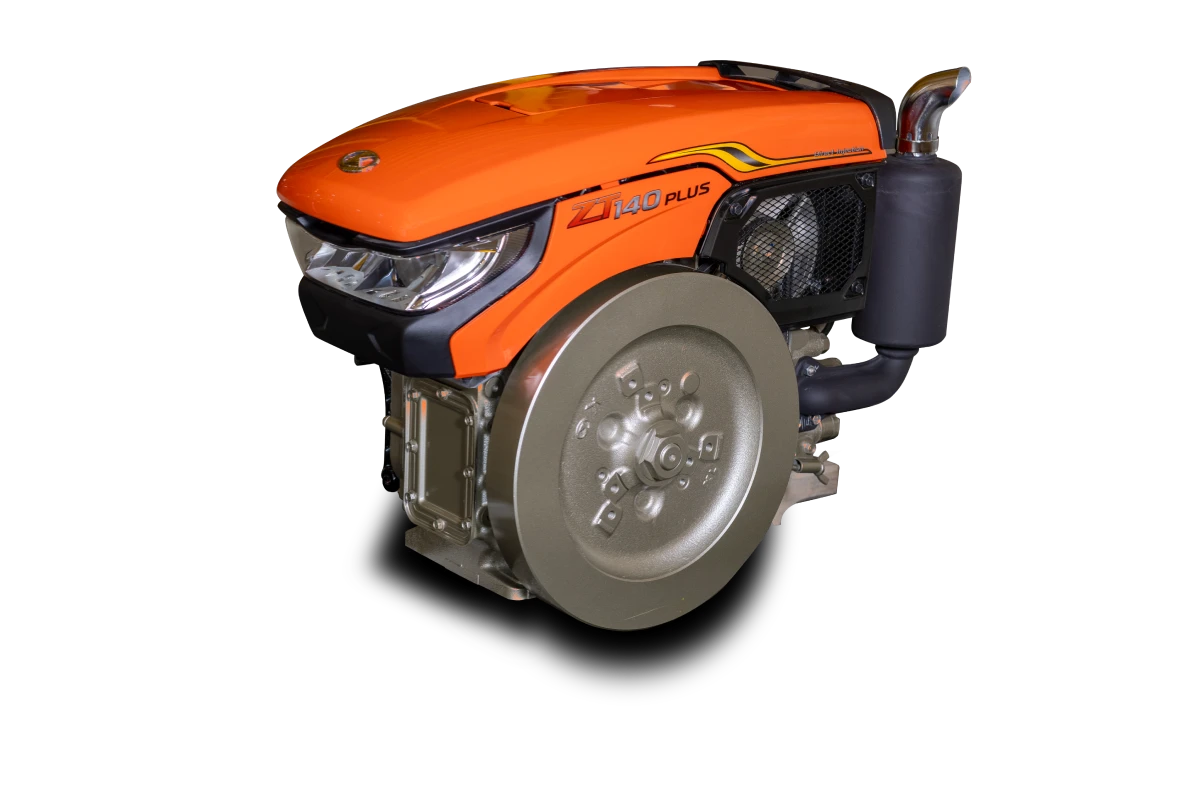

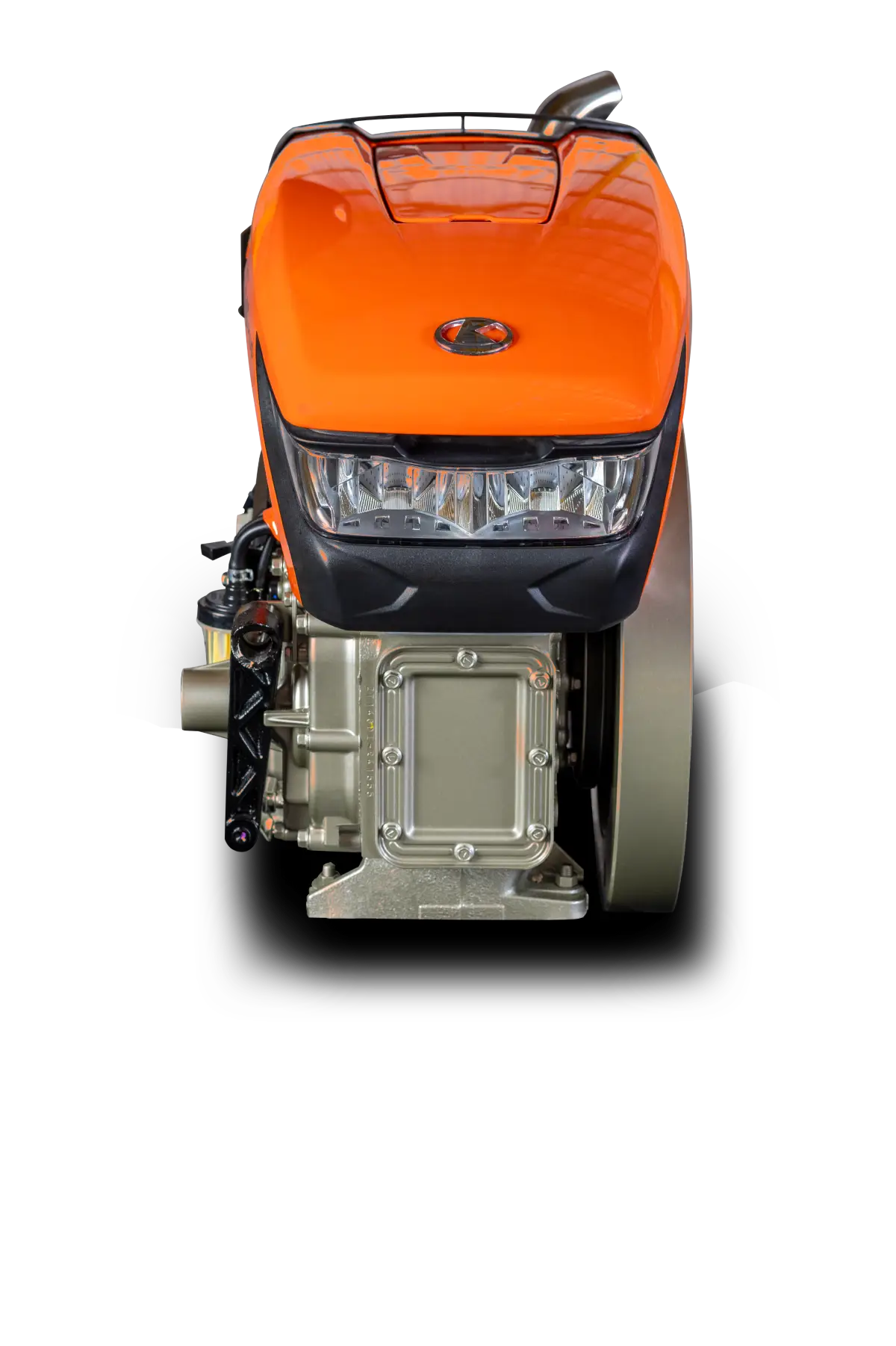

ZT140

ZT 140

Product Specifications

Dimension
Model ZT140(DI)
Type Four-stroke water cooled horizontal diesel engine
Bore x Stroke mm(in) 97 x 96
Displacement Volume cc 709
Maximum Power kW/rpm 14/2400
hp/rpm 10.3/2400
Continuous Rated Output rpm 12.5/ 2400
kW/rpm 9.19kW/ 2400
Specific fuel Consumption at Continuous Rated Power g/PS-hi, g/kW-hi 240
Compression Ratio 18.01
Maximum Torque kg-m/rpm 5.1/1600
Coolant capacity cm3 (Liter) 2.1
Fuel Capacity cm3 (Liter) 10.5
Oil Capacity cm3 (Liter) 2.8
Fuel Type Automotive used diesel fuel (SAE No. 2-D
Lubricating oil grade SAE 40 API CF
Air Cleaning Type Oil both type
Combustion System Direct Injection System
Battery capacity (ES Model only) 12 Volt 30 A-h battery
Rotation direction of flywheel Turn counterclockwise when facing the flywheel
Net Weight (kg) 112
Gross Weight (kg) 127

Application Features

Efficiency
Model ZT140(DI)
Type Four-stroke water cooled horizontal diesel engine
Bore x Stroke mm(in) 97 x 96
Displacement Volume cc 709
Maximum Power kW/rpm 14/2400
hp/rpm 10.3/2400
Continuous Rated Output rpm 12.5/ 2400
kW/rpm 9.19kW/ 2400
Specific fuel Consumption at Continuous Rated Power g/PS-hi, g/kW-hi 240
Compression Ratio 18.01
Maximum Torque kg-m/rpm 5.1/1600
Coolant capacity cm3 (Liter) 2.1
Fuel Capacity cm3 (Liter) 10.5
Oil Capacity cm3 (Liter) 2.8
Fuel Type Automotive used diesel fuel (SAE No. 2-D
Lubricating oil grade SAE 40 API CF
Air Cleaning Type Oil both type
Combustion System Direct Injection System
Battery capacity (ES Model only) 12 Volt 30 A-h battery
Rotation direction of flywheel Turn counterclockwise when facing the flywheel
Net Weight (kg) 112
Gross Weight (kg) 127
Durability
Model ZT140(DI)
Type Four-stroke water cooled horizontal diesel engine
Bore x Stroke mm(in) 97 x 96
Displacement Volume cc 709
Maximum Power kW/rpm 14/2400
hp/rpm 10.3/2400
Continuous Rated Output rpm 12.5/ 2400
kW/rpm 9.19kW/ 2400
Specific fuel Consumption at Continuous Rated Power g/PS-hi, g/kW-hi 240
Compression Ratio 18.01
Maximum Torque kg-m/rpm 5.1/1600
Coolant capacity cm3 (Liter) 2.1
Fuel Capacity cm3 (Liter) 10.5
Oil Capacity cm3 (Liter) 2.8
Fuel Type Automotive used diesel fuel (SAE No. 2-D
Lubricating oil grade SAE 40 API CF
Air Cleaning Type Oil both type
Combustion System Direct Injection System
Battery capacity (ES Model only) 12 Volt 30 A-h battery
Rotation direction of flywheel Turn counterclockwise when facing the flywheel
Net Weight (kg) 112
Gross Weight (kg) 127
Convenience
Model ZT140(DI)
Type Four-stroke water cooled horizontal diesel engine
Bore x Stroke mm(in) 97 x 96
Displacement Volume cc 709
Maximum Power kW/rpm 14/2400
hp/rpm 10.3/2400
Continuous Rated Output rpm 12.5/ 2400
kW/rpm 9.19kW/ 2400
Specific fuel Consumption at Continuous Rated Power g/PS-hi, g/kW-hi 240
Compression Ratio 18.01
Maximum Torque kg-m/rpm 5.1/1600
Coolant capacity cm3 (Liter) 2.1
Fuel Capacity cm3 (Liter) 10.5
Oil Capacity cm3 (Liter) 2.8
Fuel Type Automotive used diesel fuel (SAE No. 2-D
Lubricating oil grade SAE 40 API CF
Air Cleaning Type Oil both type
Combustion System Direct Injection System
Battery capacity (ES Model only) 12 Volt 30 A-h battery
Rotation direction of flywheel Turn counterclockwise when facing the flywheel
Net Weight (kg) 112
Gross Weight (kg) 127
