Kubota Philippines, Inc.

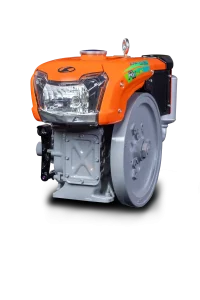

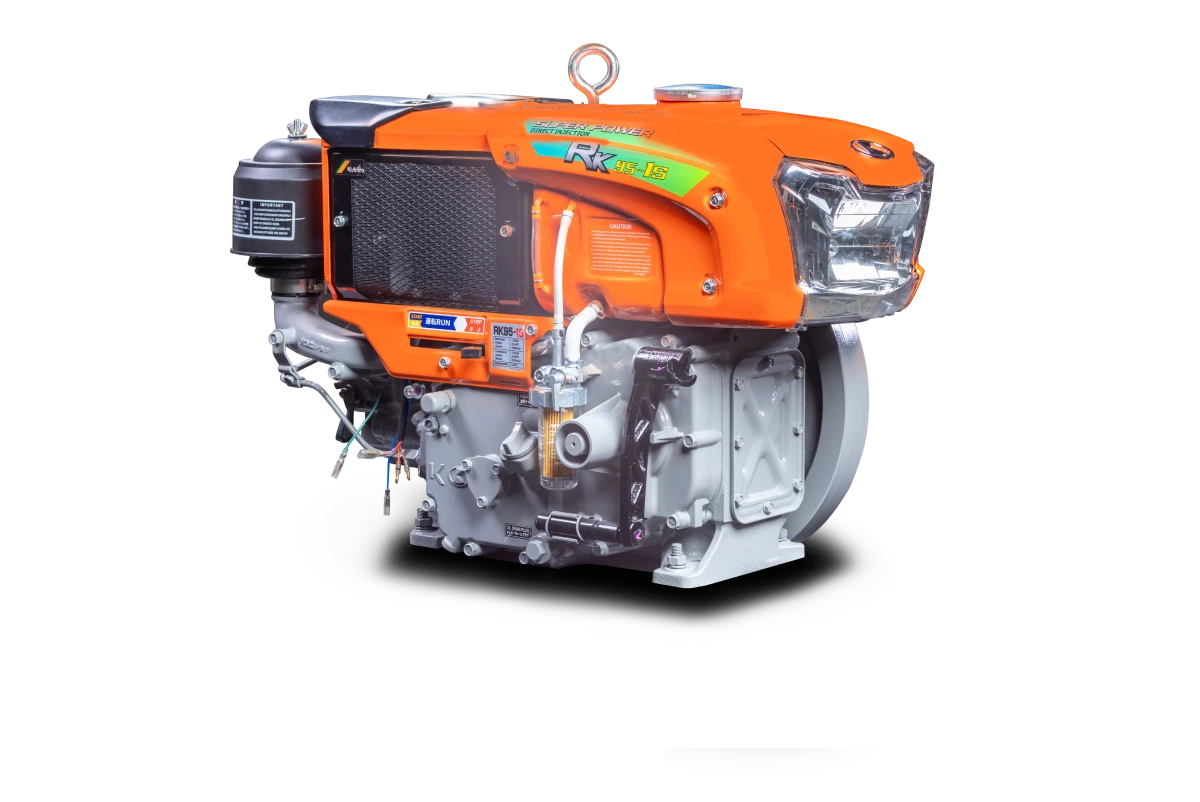

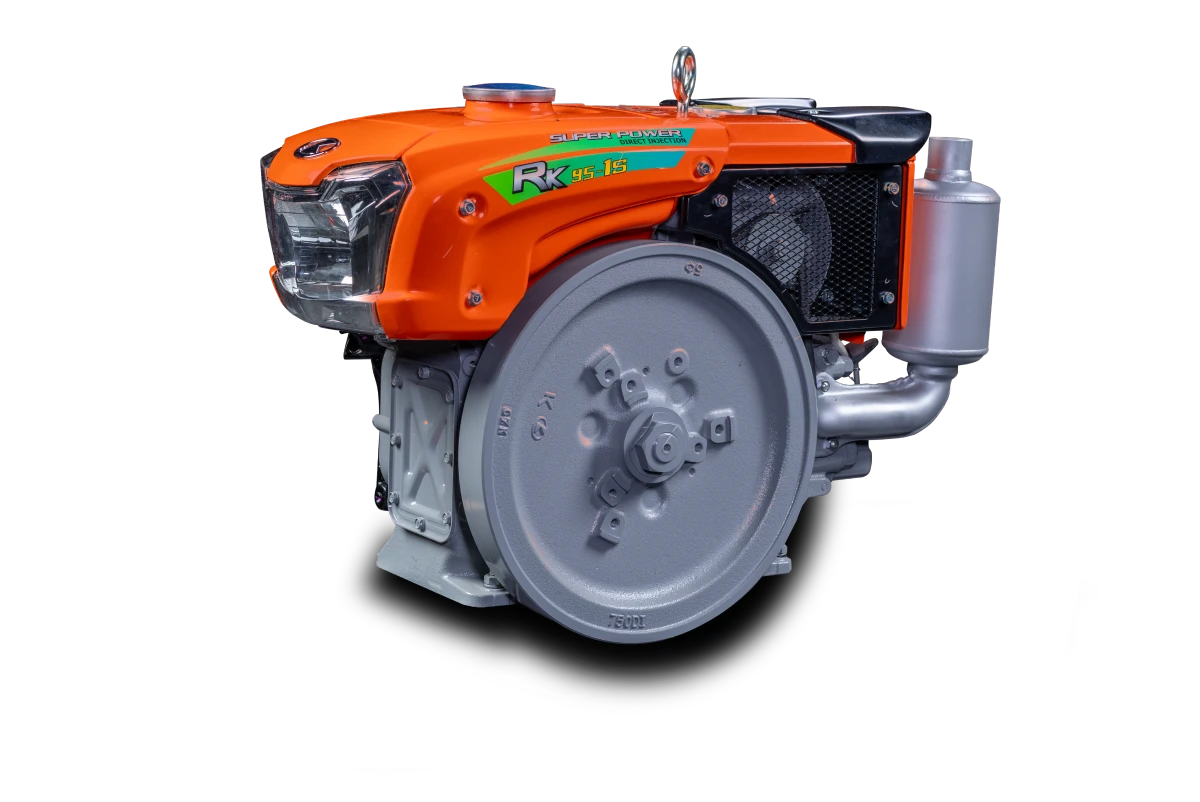

RK95-1S

Product Specifications

Dimension
Model RK95-1S
Type Horizontal Water-cooled, 4-Cycle Diesel Engine
Number of Cylinder 1
Bore x Stroke mm(in) 86 x 84 (3.39 x 3.31)
Displacement cc(cu.in) 487 (29.72)
Maximum Output hp/rpm 9.5/2400
kW/rpm 7.09/2400
Continuous Rated Output hp/rpm 8.0/2200
kW/rpm 5.97/2200
Combustion System Direct Injection System
Compression Ratio 18
Direction of Rotation Counter Clockwise (Viewed Fronting the Flywheel)
Starting System Manual Speed- Double Handling
Lubricant System Forced Lubrication with Trochoid Pump
Cooling System Radiator
Fuel Light Diesel Oil (SAE no. 2.0)
Lubricating Oil API service CC, CD or CF class (SAE #30, 20, 10W-30)
Cooling Water Capacity L(US gal) 1.6(0.42)
Fuel Tank Capacity L(US gal) 10(2.64)
Crankcase Oil Capacity L(US gal) 24(0.33)
Dry Weight kg(lb) 83(189.6)
Lamp Dynamo Output V.W With Lamp12-32
RK95
Model RK80-1S
Type Horizontal Water-cooled, 4-Cycle Diesel Engine
Number of Cylinder 1
Bore x Stroke mm(in) 82 x 84 (3.23 x 3.31)
Displacement cc(cu.in) 487 (29.72)
Maximum Output hp/rpm 9.5/2400
kW/rpm 7.09/2400
Continuous Rated Output hp/rpm 8.0/2400
kW/rpm 5.97/2200
Combustion System Direct Injection System
Compression Ratio 18
Direction of Rotation Counter Clockwise (Viewed Fronting the Flywheel)
Starting System Manual Speed- Double Handling
Lubricant System Forced Lubrication with Trochoid Pump
Cooling System Radiator
Fuel Light Diesel Oil (SAE no. 2.0)
Lubricating Oil API service CC, CD or CF class (SAE #30, 20, 10W-30)
Cooling Water Capacity L(US gal) 1.6(0.42)
Fuel Tank Capacity L(US gal) 10(2.64)
Crankcase Oil Capacity L(US gal) 24(0.64)
Dry Weight kg(lb) 83(183.0)
Lamp Dynamo Output V.W 12-32

Application Features

Efficiency
Model RK95-1S
Type Horizontal Water-cooled, 4-Cycle Diesel Engine
Number of Cylinder 1
Bore x Stroke mm(in) 86 x 84 (3.39 x 3.31)
Displacement cc(cu.in) 487 (29.72)
Maximum Output hp/rpm 9.5/2400
kW/rpm 7.09/2400
Continuous Rated Output hp/rpm 8.0/2200
kW/rpm 5.97/2200
Combustion System Direct Injection System
Compression Ratio 18
Direction of Rotation Counter Clockwise (Viewed Fronting the Flywheel)
Starting System Manual Speed- Double Handling
Lubricant System Forced Lubrication with Trochoid Pump
Cooling System Radiator
Fuel Light Diesel Oil (SAE no. 2.0)
Lubricating Oil API service CC, CD or CF class (SAE #30, 20, 10W-30)
Cooling Water Capacity L(US gal) 1.6(0.42)
Fuel Tank Capacity L(US gal) 10(2.64)
Crankcase Oil Capacity L(US gal) 24(0.33)
Dry Weight kg(lb) 83(189.6)
Lamp Dynamo Output V.W With Lamp12-32
Durability
Model RK95-1S
Type Horizontal Water-cooled, 4-Cycle Diesel Engine
Number of Cylinder 1
Bore x Stroke mm(in) 86 x 84 (3.39 x 3.31)
Displacement cc(cu.in) 487 (29.72)
Maximum Output hp/rpm 9.5/2400
kW/rpm 7.09/2400
Continuous Rated Output hp/rpm 8.0/2200
kW/rpm 5.97/2200
Combustion System Direct Injection System
Compression Ratio 18
Direction of Rotation Counter Clockwise (Viewed Fronting the Flywheel)
Starting System Manual Speed- Double Handling
Lubricant System Forced Lubrication with Trochoid Pump
Cooling System Radiator
Fuel Light Diesel Oil (SAE no. 2.0)
Lubricating Oil API service CC, CD or CF class (SAE #30, 20, 10W-30)
Cooling Water Capacity L(US gal) 1.6(0.42)
Fuel Tank Capacity L(US gal) 10(2.64)
Crankcase Oil Capacity L(US gal) 24(0.33)
Dry Weight kg(lb) 83(189.6)
Lamp Dynamo Output V.W With Lamp12-32
Convenience
Model RK95-1S
Type Horizontal Water-cooled, 4-Cycle Diesel Engine
Number of Cylinder 1
Bore x Stroke mm(in) 86 x 84 (3.39 x 3.31)
Displacement cc(cu.in) 487 (29.72)
Maximum Output hp/rpm 9.5/2400
kW/rpm 7.09/2400
Continuous Rated Output hp/rpm 8.0/2200
kW/rpm 5.97/2200
Combustion System Direct Injection System
Compression Ratio 18
Direction of Rotation Counter Clockwise (Viewed Fronting the Flywheel)
Starting System Manual Speed- Double Handling
Lubricant System Forced Lubrication with Trochoid Pump
Cooling System Radiator
Fuel Light Diesel Oil (SAE no. 2.0)
Lubricating Oil API service CC, CD or CF class (SAE #30, 20, 10W-30)
Cooling Water Capacity L(US gal) 1.6(0.42)
Fuel Tank Capacity L(US gal) 10(2.64)
Crankcase Oil Capacity L(US gal) 24(0.33)
Dry Weight kg(lb) 83(189.6)
Lamp Dynamo Output V.W With Lamp12-32
