Kubota Philippines, Inc.

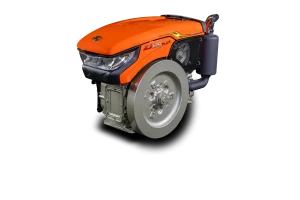

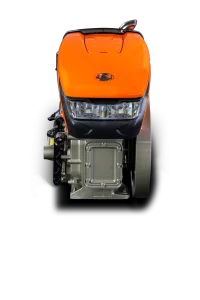

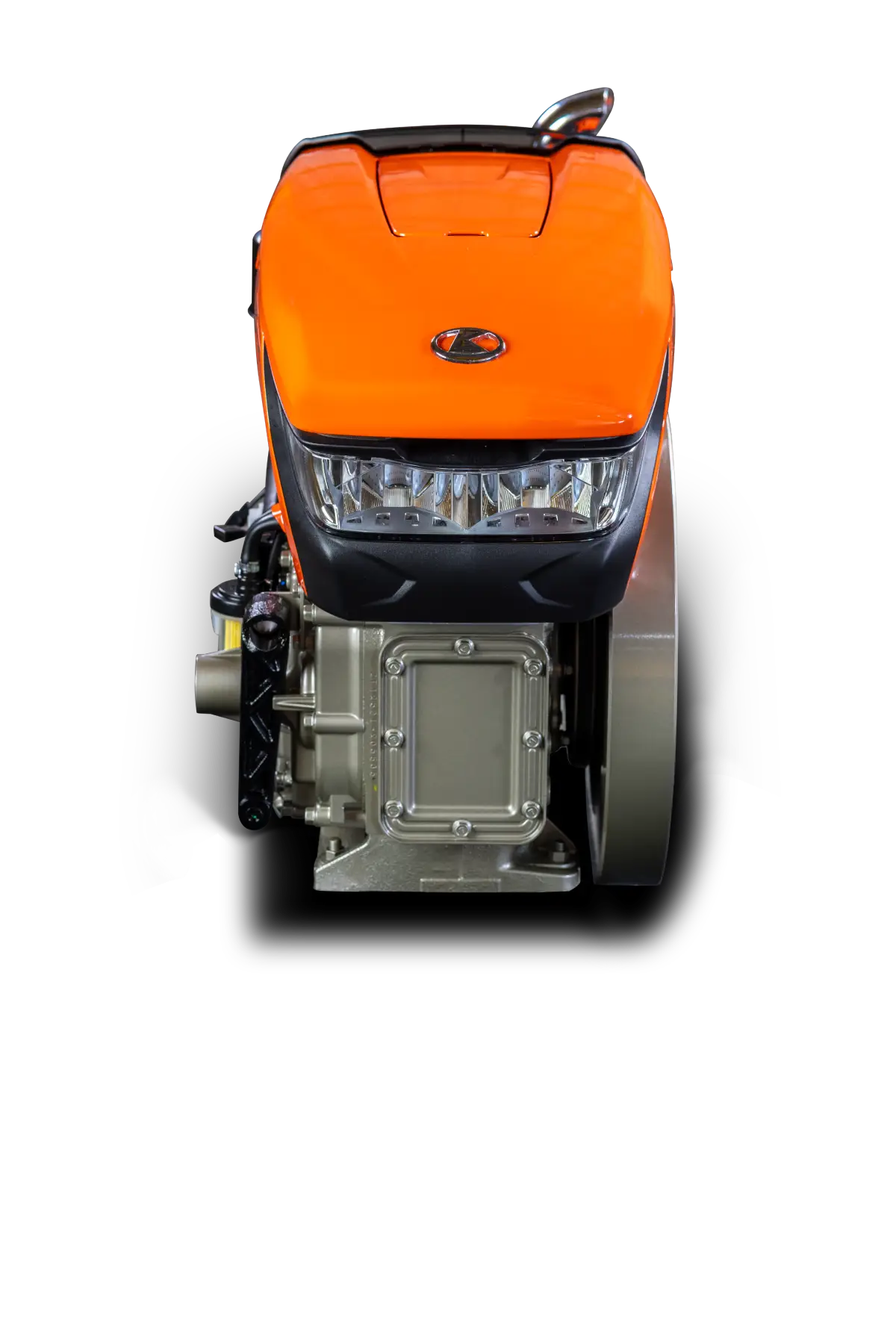

ZT125

ZT 125

Product Specifications

Dimension
Model ZT125(DI)
Type Four-stroke water cooled horizontal diesel engine
Bore x Stroke mm(in) 94 x 96
Displacement Volume cc 666
Maximum Power kW/rpm 8.19/2400
hp/rpm 12.5/2400
Continuous Rated Output rpm 11/ 2400
kW/rpm 8.09kW/ 2400
Specific fuel Consumption at Continuous Rated Power g/PS-hi, g/kW-hi 240
Compression Ratio 18.01
Maximum Torque kg-m/rpm 4.7/1600
Coolant capacity cm3 (Liter) 2.1
Fuel Capacity cm3 (Liter) 10.5
Oil Capacity cm3 (Liter) 2.8
Fuel Type Automotive used diesel fuel (SAE No. 2-D
Lubricating oil grade SAE 40 API CF
Air Cleaning Type Oil both type
Combustion System Direct Injection System
Battery capacity (ES Model only) 12 Volt 30 A-h battery
Rotation direction of flywheel Turn counterclockwise when facing the flywheel
Net Weight (kg) 111
Gross Weight (kg) 126

Application Features

Efficiency
Model ZT125(DI)
Type Four-stroke water cooled horizontal diesel engine
Bore x Stroke mm(in) 94 x 96
Displacement Volume cc 666
Maximum Power kW/rpm 8.19/2400
hp/rpm 12.5/2400
Continuous Rated Output rpm 11/ 2400
kW/rpm 8.09kW/ 2400
Specific fuel Consumption at Continuous Rated Power g/PS-hi, g/kW-hi 240
Compression Ratio 18.01
Maximum Torque kg-m/rpm 4.7/1600
Coolant capacity cm3 (Liter) 2.1
Fuel Capacity cm3 (Liter) 10.5
Oil Capacity cm3 (Liter) 2.8
Fuel Type Automotive used diesel fuel (SAE No. 2-D
Lubricating oil grade SAE 40 API CF
Air Cleaning Type Oil both type
Combustion System Direct Injection System
Battery capacity (ES Model only) 12 Volt 30 A-h battery
Rotation direction of flywheel Turn counterclockwise when facing the flywheel
Net Weight (kg) 111
Gross Weight (kg) 126
Durability
Model ZT125(DI)
Type Four-stroke water cooled horizontal diesel engine
Bore x Stroke mm(in) 94 x 96
Displacement Volume cc 666
Maximum Power kW/rpm 8.19/2400
hp/rpm 12.5/2400
Continuous Rated Output rpm 11/ 2400
kW/rpm 8.09kW/ 2400
Specific fuel Consumption at Continuous Rated Power g/PS-hi, g/kW-hi 240
Compression Ratio 18.01
Maximum Torque kg-m/rpm 4.7/1600
Coolant capacity cm3 (Liter) 2.1
Fuel Capacity cm3 (Liter) 10.5
Oil Capacity cm3 (Liter) 2.8
Fuel Type Automotive used diesel fuel (SAE No. 2-D
Lubricating oil grade SAE 40 API CF
Air Cleaning Type Oil both type
Combustion System Direct Injection System
Battery capacity (ES Model only) 12 Volt 30 A-h battery
Rotation direction of flywheel Turn counterclockwise when facing the flywheel
Net Weight (kg) 111
Gross Weight (kg) 126
Convenience
Model ZT125(DI)
Type Four-stroke water cooled horizontal diesel engine
Bore x Stroke mm(in) 94 x 96
Displacement Volume cc 666
Maximum Power kW/rpm 8.19/2400
hp/rpm 12.5/2400
Continuous Rated Output rpm 11/ 2400
kW/rpm 8.09kW/ 2400
Specific fuel Consumption at Continuous Rated Power g/PS-hi, g/kW-hi 240
Compression Ratio 18.01
Maximum Torque kg-m/rpm 4.7/1600
Coolant capacity cm3 (Liter) 2.1
Fuel Capacity cm3 (Liter) 10.5
Oil Capacity cm3 (Liter) 2.8
Fuel Type Automotive used diesel fuel (SAE No. 2-D
Lubricating oil grade SAE 40 API CF
Air Cleaning Type Oil both type
Combustion System Direct Injection System
Battery capacity (ES Model only) 12 Volt 30 A-h battery
Rotation direction of flywheel Turn counterclockwise when facing the flywheel
Net Weight (kg) 111
Gross Weight (kg) 126

Best Partnered With These Accessories

Lorem ipsum dolor sit amet consectetur. Elementum nisl duis tortor sed. Suspendisse lobortis vitae quis vehicula pellentesque sit id.

12.5HP

ZT125
